Factory Professional Stainless Steel Cylinder Wire Mesh Filter/Wedge Wire Filter Drum/Wire Wrapped Drum Screen For Gravel

FOB Reference Price:Get Latest Price
US $3-35 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
Huahang
Model Number:
melt oil filter
Power(W):
Needed
Weight:
1~10 KG
Dimension(L*W*H):
Customer's Request
Certification:
ISO9001:2008,CE
Warranty:
1 years
After-sales Service Provided:
Engineers available to service machinery overseas
Filter material:
stainless steel 304,304L,304HC,316,316L,321,430 or as your request.
Working Pressure:
No less than 31.7Mpa
Working Temperature:
Less than 300 degress
Medium Viscosity:
Less than 260Pa.S
Dirt Holding Capacity:
More than 16.9-41 Mgcm2
Allow Pressure Drop:
Less than 10 Mpa
Usage:
Oil filter for machines and industrial
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Netural packing,carton inside and wooden outside,sometimes according customer request
Port
Qingdao ,Shanghai or any other Chinese ports
Lead Time :
15-20 work days
Product Description

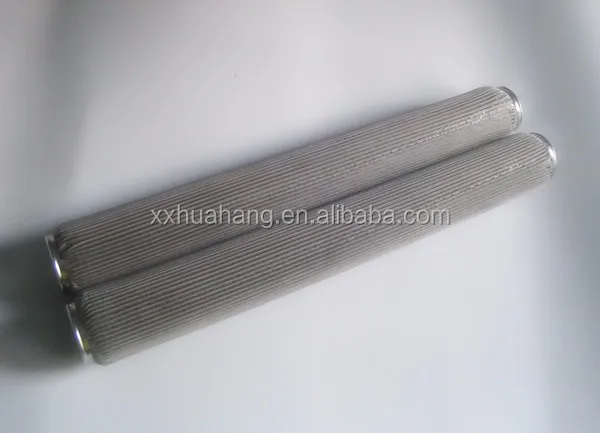

Stainless steel cylinder filter element is available by variety of styles to satisfy customer requirements. We design it according to micron rating, differential pressure, product characteristics, on stream life requirements, disposability, and cleaning method. The filter media included metal fiber felt, muti-layer metal mesh, metal wire mesh, and others. It can be provided as a flat wrap for making cylindrical filters elements or pleated for making pleated filter elements.
Application:

water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

1.High temperature fluids                             2.High viscosity fluids                            3.Toxic or hazardous fluids
4.Hydraulic oil                                                   5.Natural or process gases                    6.Process steam
7.High differential pressure                         8.Corrosive liquids and gases              9.Cryogenic fluids
10.Electronic grade liquids or gases        11.Precious particulate recovery       12.Sterilization steam

Products Show
Type
Micron(μm)
Pressure of Bubble Point
(pa)
Air Permeability
L/(min.dm2)
Pore Opening
(%)
Pollutant Carry Capacity
(mg/cm2)
Thickness (mm)
Breaking Strength
(MPa)
SF5
5
6800
47
75
5.0
0.30
32
SF7
7
5200
63
76
6.5
0.30
36
SF10
10
3700
105
75
7.8
0.37
32
SF15
15
2450
205
79
8.6
0.40
23
SF20
20
1900
280
80
15.5
0.48
23
SF25
25
1550
355
80
19.0
0.62
20
SF30
30
1200
520
80
26.0
0.63
23
SF40
40
950
670
78
29.0
0.68
26
SF60
60
630
1300
85
36.0
0.62
28

Notes:

1.Material:SUS316L     2.Micron:5-60um     3.Could add protected mesh on both side

Mesh :100X100mesh ,120X120mesh ,150X150mesh ,180X180mesh,80X80mesh ,120X130,70X200,165X100.
Wire diameter:0.05,0.08,0.10,0.15mm,0.20mm,0.45mm
The length :10cm,15cm,20cm,30cm,40cm,50cm,60cm,70cm,80cm,90cm,100cm

Advantages

1.3 times greater dirt holding capacity than conventional metal cartridges
2.Double the porosity and permeability than sinter metal power cartridges
3.4 times higher flow rate than conventional metal cartridges
4.No media migration or fiber release
5.Excellent mechanical strength
6.Reclothing design available

Other Type


Packing & Delivery

1.Carton inside,wooden outside,neutral packaging
2.As your requirements
3.By international express,air and sea
4.Shipment port:Qingdao or any other chinese ports
5.7-15 working days after confirming payment

Our Service

1.Pre-sale service :
   Provide you best products price you need
   Answer all your questions about the products patiently .
2.Medium-sale service :
   All filter element will be tested before shippment
   Provide you newest goods transport conditions until you receive our products
3.After-sale service :
   Technical advisory for any time
   If the products have quality problem , and because of us , we will make the new products to you

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Contact  Us

Linda
Mobile Phone:+8615993088929
Fax: +86-373-5471026
Homepage:www.huahangfilters.com
Skype:Linda zhang128315

Address: Industrial Park, Dazhaoying Town,Xinxiang City ,Henan Province ,China

Our Certifications
Customer Photo
FAQ

1.Q:Are you a factory or trading company?
A:Our factory was build in 2003.


2.Q:How can I get some samples?
A: We are honored to offer you samples.

3.Q:How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the beginning
to the end. Our products have past:
resistance to rupture of filter element as per   ISO   2941
structural integrity of filter element as per   ISO  2943
compatibility of filter element as per  ISO  2943
filter filtrability as per  ISO   4572
filter differential pressure specility as per ISO 3968
test of flow - differential pressure specility as per ISO 3968
viscosity of test oil
